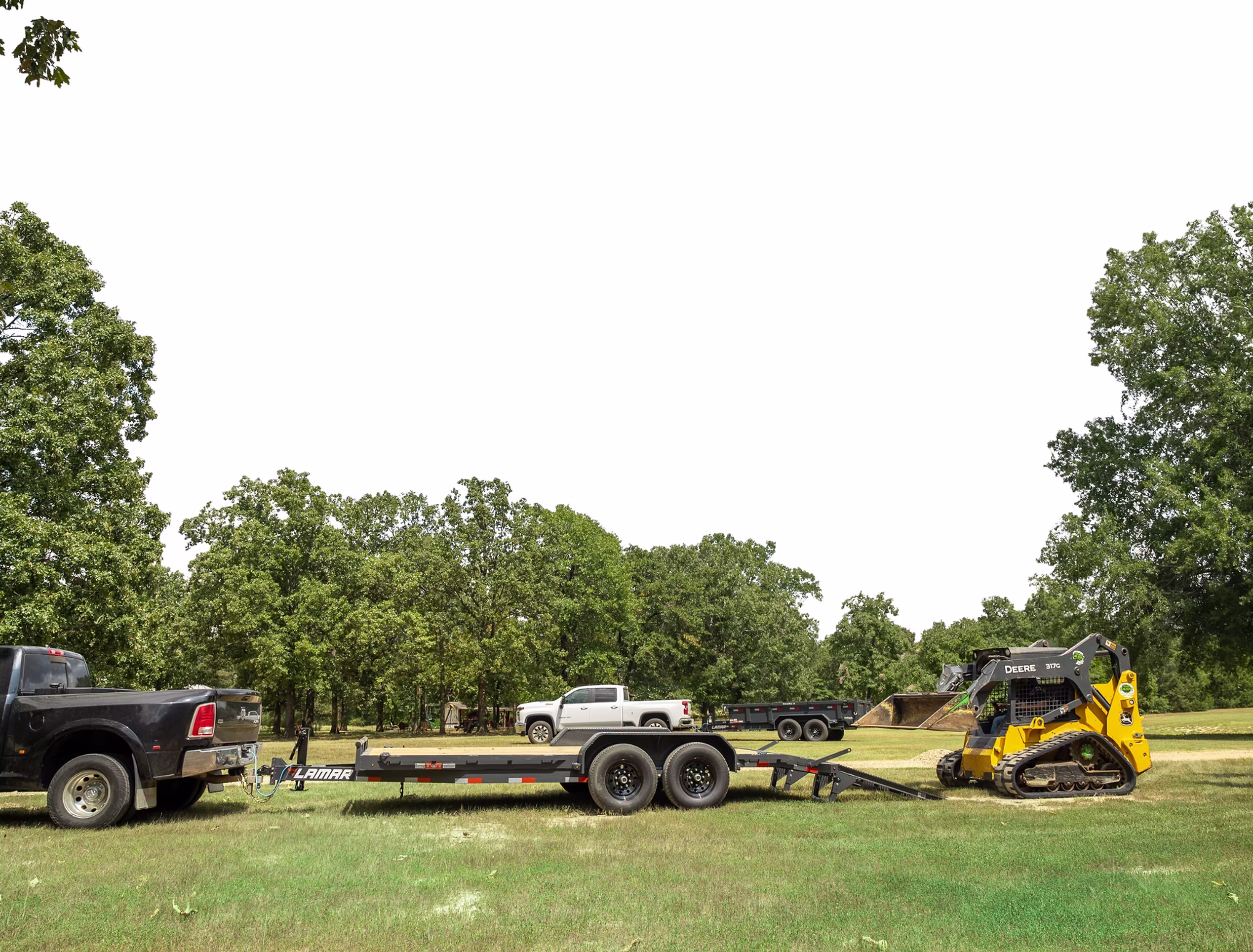

Equipment Hauler
6" CHANNEL FRAME
16" SPACED CROSSMEMBERS
CARGO TIE DOWNS
Equipment Hauler
Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Premium Components
We use brand name quality products for anything we don't produce in house
Pressure Treated Pine Floor
All our lumber is made and installed to withstand weather.
3 Year Structural Warranty
All our frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat that will hold up to weather and salt better than liquid.
Full specs & options
14K Sizes & Payload
Size - Weight - Payload
- 83" x 14' - 2,632 lbs - 11,368 lbs
- 83" x 16' - 2,720 lbs - 11,280 lbs
- 83" x 18' - 2,800 lbs - 11,200 lbs
- 83" x 20' - 2,910 lbs - 11,090 lbs
- 83" x 22' - 3,080 lbs - 10,920 lbs
- 102" x 20' - 3,420 lbs - 10,580 lbs
- 102" x 22' - 3,725 lbs - 10,275 lbs
16K Sizes & Payload
Size - Weight - Payload
- 83" x 14' - 2,782 lbs - 13,218 lbs
- 83" x 16' - 2,870 lbs - 13,130 lbs
- 83" x 18' - 2,950 lbs - 13,050 lbs
- 83" x 20' - 3,060 lbs - 12,940 lbs
- 83" x 22' - 3,230 lbs - 12,770 lbs
- 102" x 20' - 3,570 lbs - 12,430 lbs
- 102" x 22' - 3,875 lbs - 12,125 lbs
Brakes & Suspension
Standard
- Varies by GVWR
- 7K Easy Lube Electric Brake Spring Axles
- Tandem Axle Configuration (14k-16k GVWR)
Options to Exchange or Add On
- 8K Electric Brake Oil Bath Spring Axles
- 7K Electric Brake Oil Bath Spring Axles
- 7K Easy Lube Electric Brake 22.5° Down Torsion Axles
Tires
Standard
- Varies by GVWR
- 235/80 R16 (E)10Ply Tire With Black Wheel
Options to Exchange or Add On
- Spare Tire Mount
- Spare Tire
- 215/75 R17.5 (H) 16Ply SS Tire Black Wheel
- 235/85 R16 (G) 14Ply Tire With Black Wheel
Frame
Standard
- 16" Spaced Crossmembers
- Straight Deck
- Diamond Plate Fenders (Standard on 83" Wide)
- Drive Over Fenders (Standard on 102" Wide)
- Treated Yellow Pine Floor
- 6" Channel Frame
- Wrap Tongue
Options to Exchange or Add On
- 8' Deck Over Neck
- 2' Dove Tail
- 4' Dove Tail
- Removable Diamond Plate Fenders
- 11 Gauge Diamond Plate Floor
- Oak Floor
Hitch
Standard
- 2-5/16" 21K Demco Adjustable Cast Iron Coupler
Options to Exchange or Add On
- 3" 25K Adjustable Pintle Eye Coupler
- 2-5/16" 25K Gooseneck Coupler
- 2-5/16" 30K Gooseneck Adjustable Topwind Square Coupler
- 6" Raised Neck & Coupler (ideal for lifted trucks)
- 12" Raised Neck & Coupler (ideal for lifted trucks)
Jack
Standard
- Single 10K Drop-Leg Jack
Options to Exchange or Add On
- Dual 10K Drop-Leg Jacks
- Single 10K 2-Speed Jack
- Dual 10K 2-Speed Jacks
Cargo Loading
Standard
- Pair Of Slide-In Ramps
- Rub Rail
- Standard Stake Pockets
Options to Exchange or Add On
- Lockable Chain Rack
- Weld On D-Rings
- Flush Mount D-Rings
- Pair Of Rhino Ramps
- Pair Of 24" Wide Heavy Duty Stand-Up Ramps (18° Loading Angle)
- Receiver Hitch & Plug
- Extra Stake Pockets
- Flush Mount Swivel D-Rings
- Front Tool Box
- 12,500lb Warrior Winch
- Winch Plate
Electrical
Standard
- Led Lights
- Weather Resistant Harness (-65°F)
Options to Exchange or Add On
- Solar Charger
Loading Angles
Standard
- Straight Deck with 57" Slide In Ramps - 25°
Options to Exchange or Add On
- Straight Deck with 24" Stand Up Ramps - 25°
- 2' Dove with 57" Slide In Ramps - 18°
- 2' Dove with 24" Stand Up Ramps - 18°
- 4' Dove with 57" Slide In Ramps - 14°
- 4' Dove with 24" Stand Up Ramps - 14°
- 4' Dove with Rhino Ramps - 15°
Color
Standard
- Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
- No Additional Options Available
