Telescopic Dump Trailer

Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Premium Components
We use brand name quality products for anything we don't produce in house for our dump trailers.
7 Gauge Floor
Our dump trailers 7 gauge floor prevents the warping and waving of industry standard 12 gauge floors.
3 Year Structural Warranty
All our dump trailer frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat that will hold up to weather and salt better than liquid.

Telescopic Dump Trailer

01

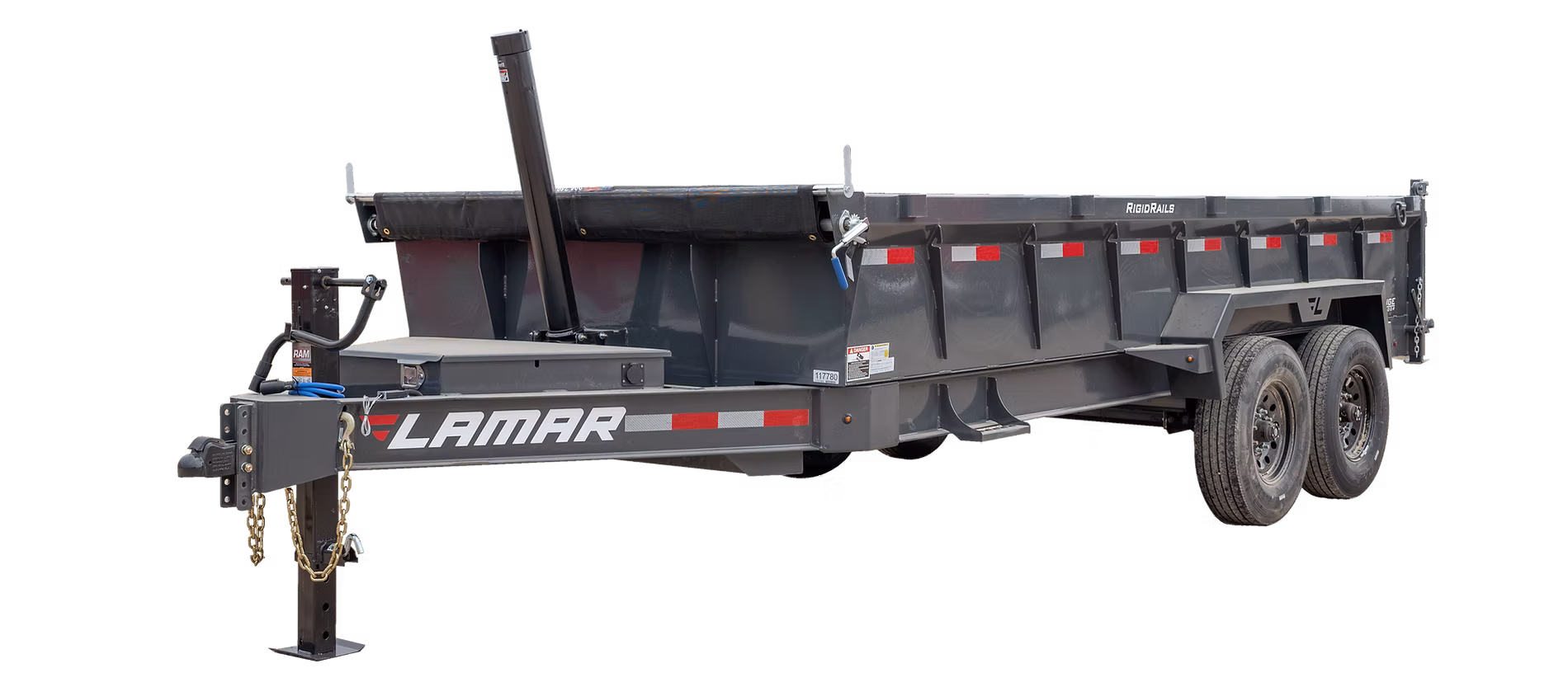

One of the keys to building the best dump trailer on the market means having a low-profile frame. Lamar’s Low Pro Dump Trailer is a 14k dump trailer, (available as a 16k dump trailer) with a 28” deck height. This makes unloading and loading and equipment easy.
02
This model is ideal for home owners, commercial use, construction, landscaping, trash removal and a host of other applications.
03
Whether you are looking for a low side dump trailer or a high side dump trailer, the Lamar Low Pro Dump trailer offers both, with 24” sides, 36" sides or 48” sides.
04
With a payload of either 9,000lbs or 11,000lbs depending on axle size, the low pro dump trailer can handle all types of material and equipment.
05
Our heavy duty dump trailer comes fully equipped, and standard with all the best options. 10k jacks, a 47° dumping angle, hydraulic telescopic cylinder, massive toolbox, d-rings, spreader gate and barn door combo, LED bullet lights, fully sealed weather resistant wiring, black wheels, 12” spaced crossmembers, rear slide in ramps and a 13lb I-beam frame.
06

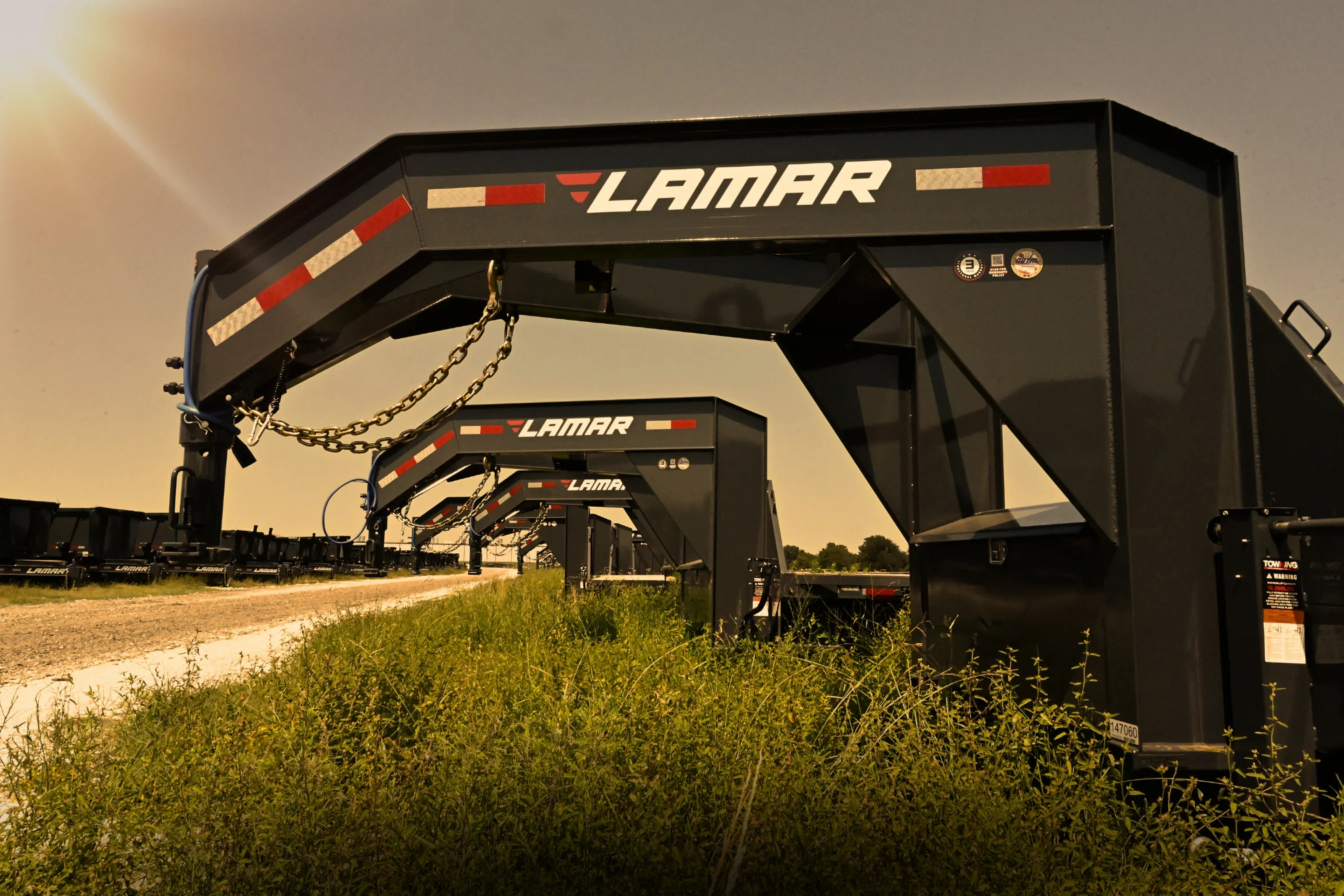

Don’t miss out on our gooseneck dump trailer option, available with 6” raised neck for lifted trucks.

Full specs & options

14K Sizes & Payload
Size - Weight - Payload
  • 83" x 14' - 4,405 lbs - 9,595 lbs
  • 83" x 16' - 4,680 lbs - 9,320 lbs
16K Sizes & Payload
Size - Weight - Payload
  • 83" x 14' - 4,685 lbs - 11,315 lbs
  • 83" x 16' - 5,280 lbs - 10,720 lbs
21K Sizes & Payload
Size - Weight - Payload
  • 83" x 16' - 5,125 lbs - 15,875 lbs
Brakes & Suspension
Standard
  • Varies by GVWR
  • 7K Easy Lube Electric Brake Spring Axles
  • Tandem Axle Configuration (14k-16k GVWR)
Options to Exchange or Add On
  • 7K Easy Lube Electric Brake Drop Spring Axles
  • 7K Electric Brake Oil Bath Spring Axles
  • 7K Easy Lube Electric Brake 22.5° Down Torsion Axles
  • 8K Electric Brake Oil Bath Spring Axles​
  • 8K Electric Brake 22.5° Down Torsion Axles
  • Triple Axle Configuration (21k GVWR)
Tires
Standard
  • Varies by GVWR
  • 235/80 R16 (E)10Ply Tire
  • Spare Tire Mount
Options to Exchange or Add On
  • 215/75 R17.5 (H) 16Ply SS Tire Black Wheel
  • 235/85 R16 (G) 14Ply Tire With Black Wheel
  • Spare Tire
Frame
Standard
  • 8" 13 lb I-Beam Frame
  • 24" Sides (6 - 8 cubic yards)
  • 12" Spaced Crossmembers
  • 7 Gauge Floor
Options to Exchange or Add On
  • 8' Deck Over Neck
  • 24" Solid Metal Side Extensions
  • 36" Sides (9 - 12 cubic yards)
  • 48" Sides (12 - 16 cubic yards)
Hitch
Standard
  • 2-5/16" 21K Demco Adjustable Cast Iron Coupler
Options to Exchange or Add On
  • 3" 25K Adjustable Pintle Eye Coupler
  • 2-5/16" 25K Gooseneck Coupler
  • 2-5/16" 30K Gooseneck Adjustable Topwind Square Coupler
  • 6" Raised Neck & Coupler (ideal for lifted trucks)
  • 12" Raised Neck & Coupler (ideal for lifted trucks)
Jack
Standard
  • Single 10K Drop-Leg Jack
Options to Exchange or Add On
  • Dual 10K Drop-Leg Jacks
  • Single 10K 2-Speed Jack
  • Dual 10K 2-Speed Jacks
  • Pair Of Support Stands
Cargo Loading
Standard
  • Front Tool Box
  • Spreader Gate
  • Easy Roll Mesh Tarp
  • Standard Stake Pockets
  • Pair Of Heavy Duty Slide In Ramps (21°)
Options to Exchange or Add On
  • Weld On D-Rings
  • Extra Stake Pockets
  • Receiver Hitch & Plug
Electrical
Standard
  • Led Lights
  • 5 Amp Trickle Charger
  • Weather Resistant Harness (-65°F)
  • 12V Deep Cycle Battery Kit
  • 12V DC Pump
  • Front Mounted Telescopic Lift (45°)
Options to Exchange or Add On
  • Solar Charger
  • Wireless Remote Control
  • Pair Of 12V Deep Cycle Battery Kits
Color
Standard
  • Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
  • No Options Available

all product specifications
